Ping Identity
This guide connects a PingOne OIDC web application with the generic driver.
The historical realm name pingid remains in the callback for compatibility;
it does not implement the separate PingID mobile authentication API. PingOne
can enforce its own sign-on/MFA policy before returning an OIDC identity.

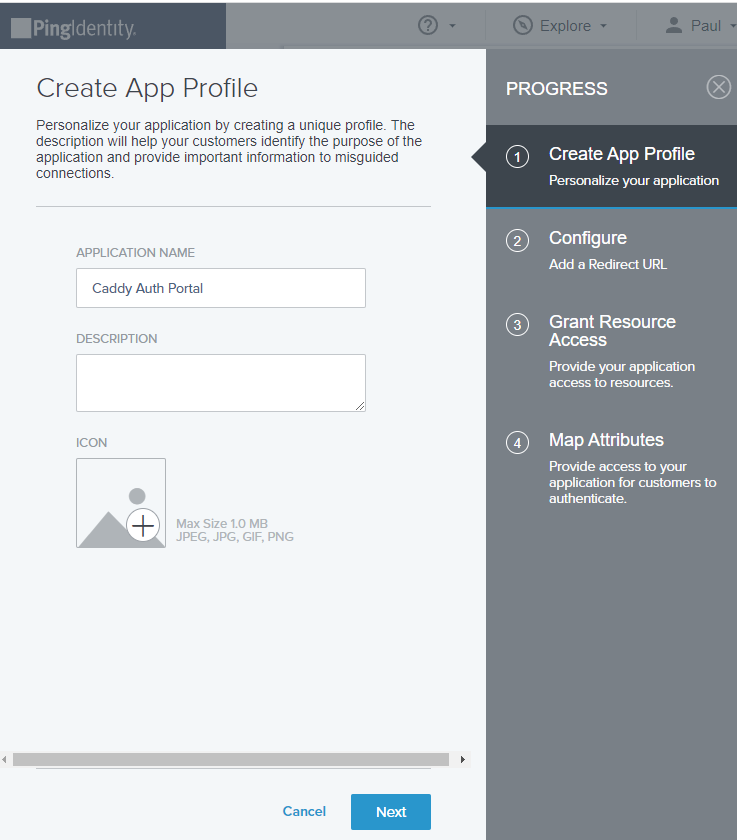

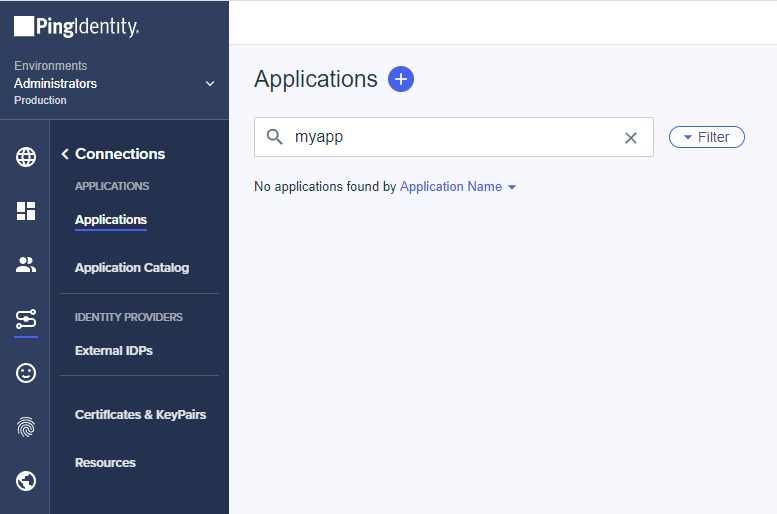

Register a confidential web application

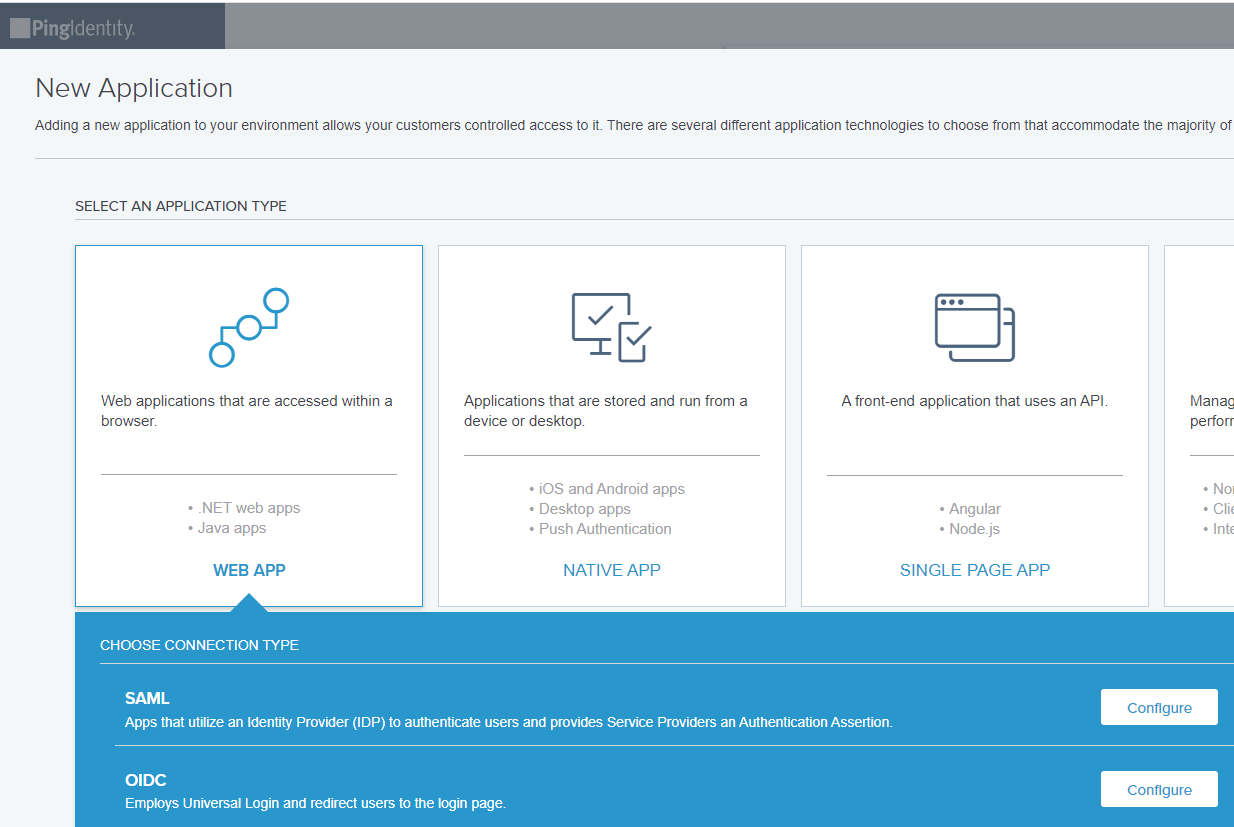

Create an OIDC web application in the intended PingOne environment, enable authorization code, register the callback below, and configure token endpoint authentication as Client Secret Post. PingOne web applications can default to Client Secret Basic; the bundled generic exchange sends the secret in the form body. See PingOne application settings.

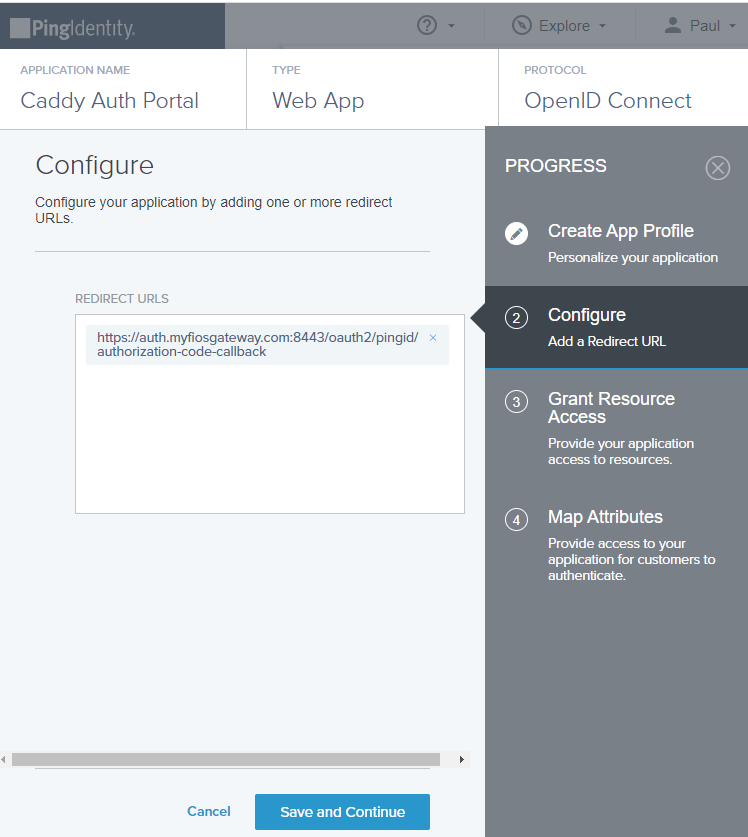

https://auth.example.com/auth/oauth2/pingid/authorization-code-callback

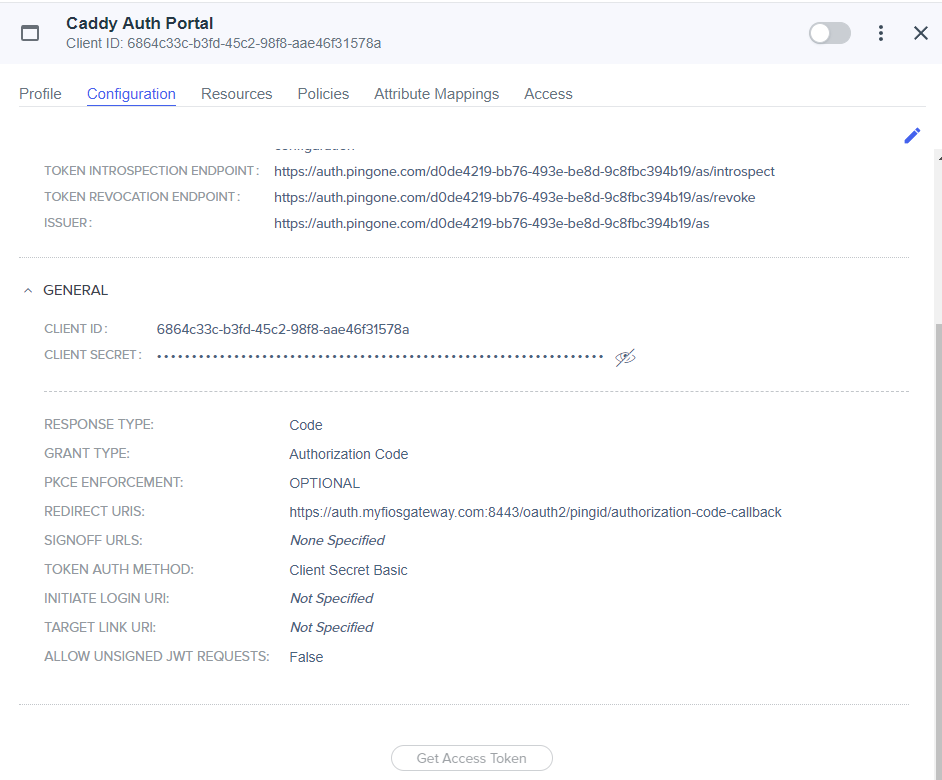

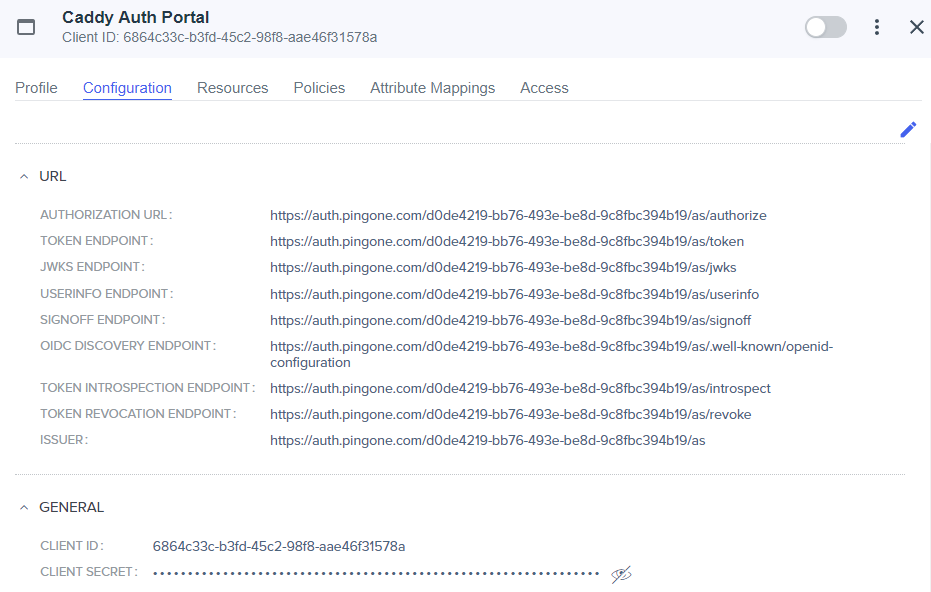

Copy the actual issuer and OIDC discovery URL from your environment/application.

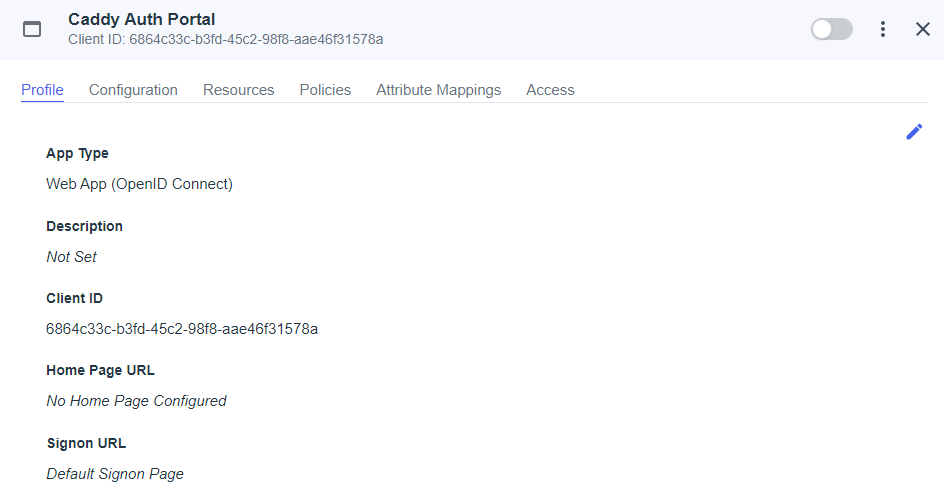

Use the region or custom domain PingOne provides. The environment ID and OAuth
client ID are different values; do not construct the issuer from an application
ID. Supply PINGONE_ISSUER, PINGONE_DISCOVERY_URL, PINGONE_CLIENT_ID,
PINGONE_CLIENT_SECRET, and the private AUTHCRUNCH_SIGNING_KEY.
The issuer/discovery values expand before Caddyfile parsing.

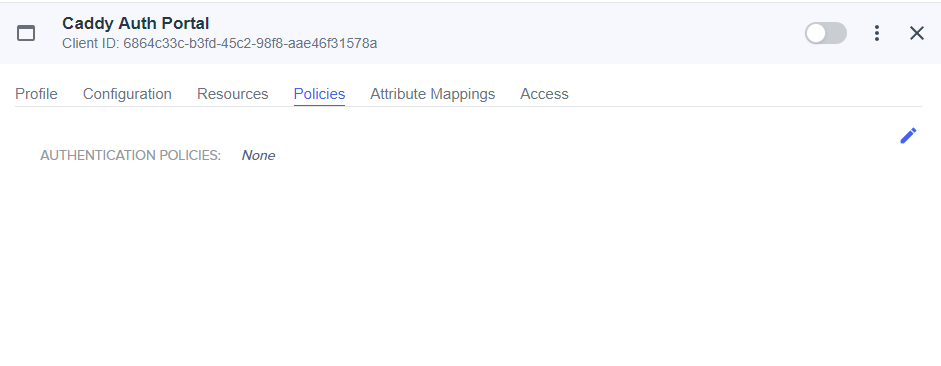

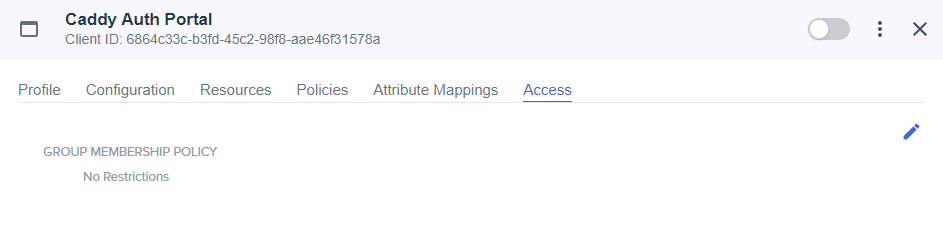

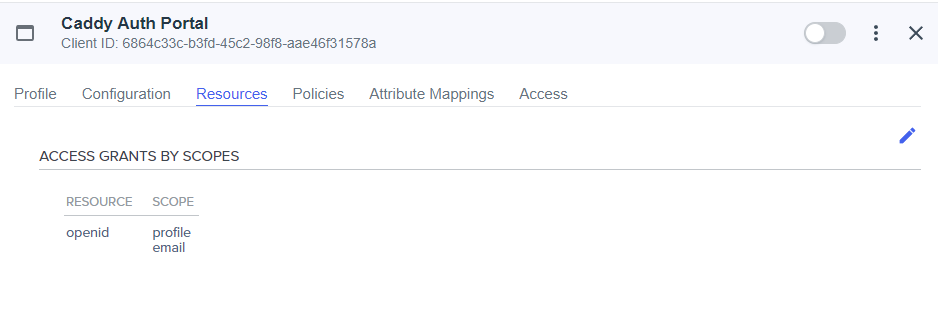

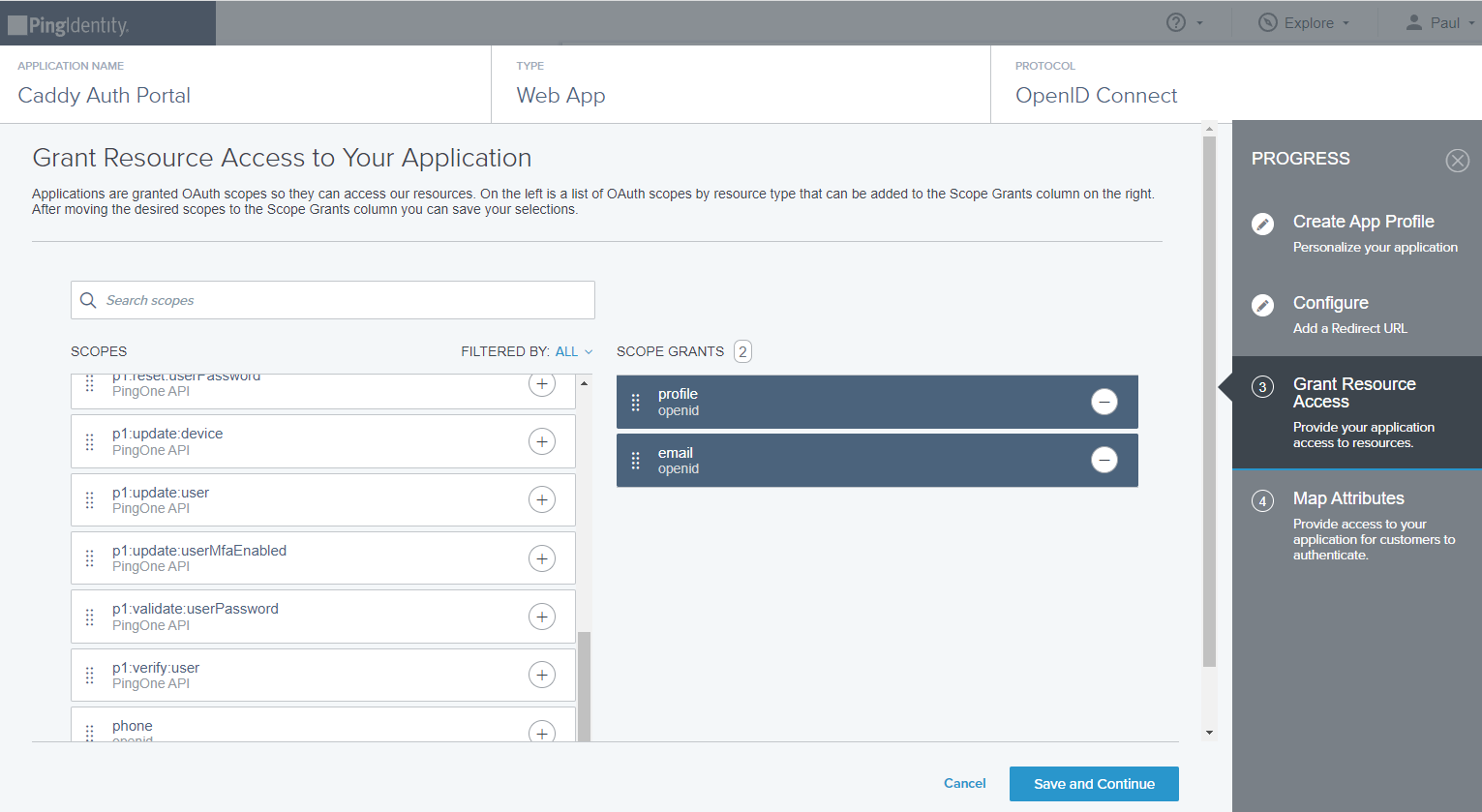

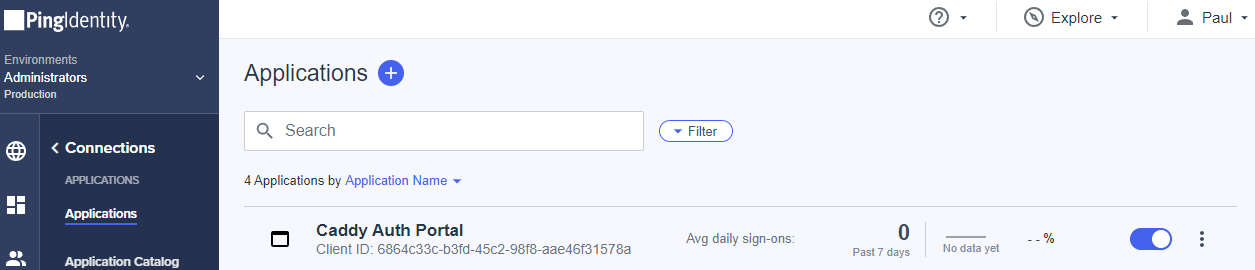

Preserved PingOne setup sequence
Align the issuer before troubleshooting membership
Ping-branded products and endpoints are not interchangeable. Use the exact discovery and issuer values for the selected service.
| Boundary | Compare | Keep separate |
|---|---|---|
| Browser callback | Public HTTPS origin, portal mount, and AuthCrunch realm | Provider environment or tenant identifier |
| Server discovery and exchange | Reachable discovery/token/key endpoints and client authentication | A browser-only network path |
| Token trust | Exact issuer, client audience, signature, and transaction checks | A configured product/driver name |
| Application grant | Supported claims and deliberate role transform | Successful provider login alone |
Configure AuthCrunch
# caddy-security v1.3.0 / go-authcrunch v1.3.8. Replace auth.example.com.
{
admin off
persist_config off
security {
oauth identity provider pingid {
realm pingid
driver generic
client_id {env.PINGONE_CLIENT_ID}
client_secret {env.PINGONE_CLIENT_SECRET}
scopes openid profile email
response_type code
issuer {$PINGONE_ISSUER}
metadata_url {$PINGONE_DISCOVERY_URL}
login icon text "PingOne"
}
authentication portal myportal {
enable identity provider pingid
crypto default token lifetime 900
crypto key sign-verify {env.AUTHCRUNCH_SIGNING_KEY}
ui {
links {
"Example app" /app
"My identity" /auth/whoami
}
}
transform user {
match realm pingid
action overwrite role authp/user
}
transform user {
match realm pingid
match sub {$PINGONE_ALLOWED_SUB}
action add role app/member
}
}
authorization policy apppolicy {
set auth url https://auth.example.com/auth/
crypto key verify {env.AUTHCRUNCH_SIGNING_KEY}
validate bearer header
allow roles app/member
}
}
}
auth.example.com {
route {
redir /auth /auth/ 308
authenticate /auth/* with myportal
@app path /app /app/*
route @app {
authorize with apppolicy
respond "You reached the protected example app." 200
}
respond "Open /app to begin." 200
}
}
PINGONE_ALLOWED_SUB must be the entire exact observed subject. The transform
resets provider roles before granting the selected identity app/member.

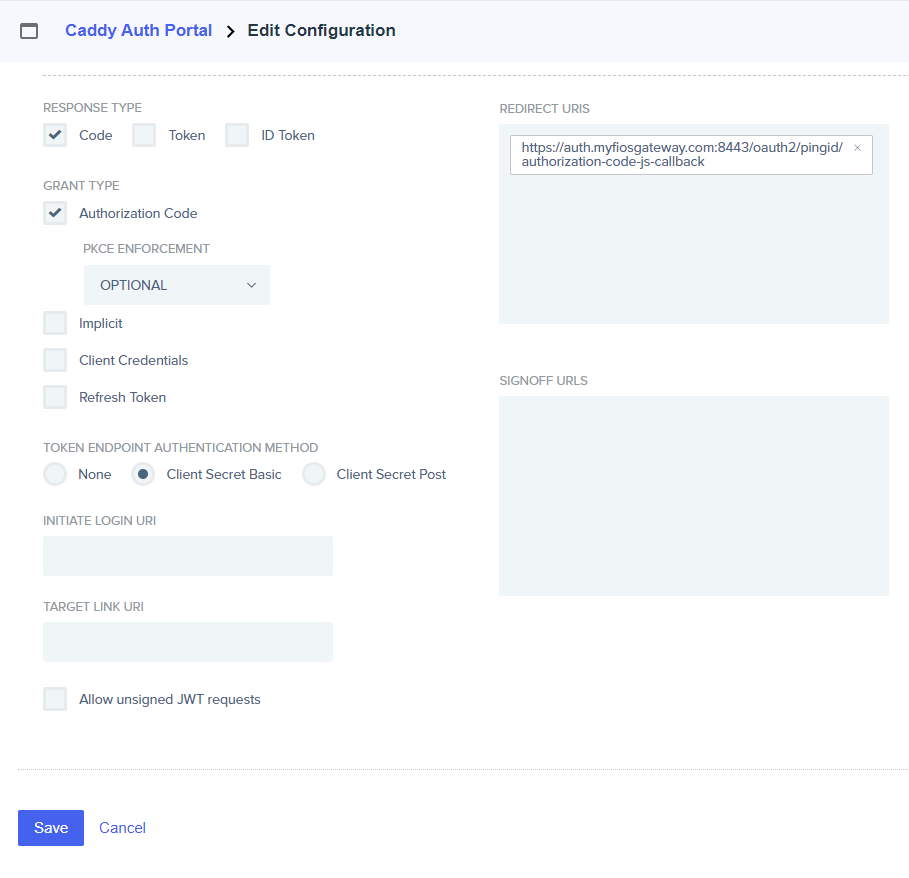

PKCE is enabled by the generic driver; keep the application's PKCE policy

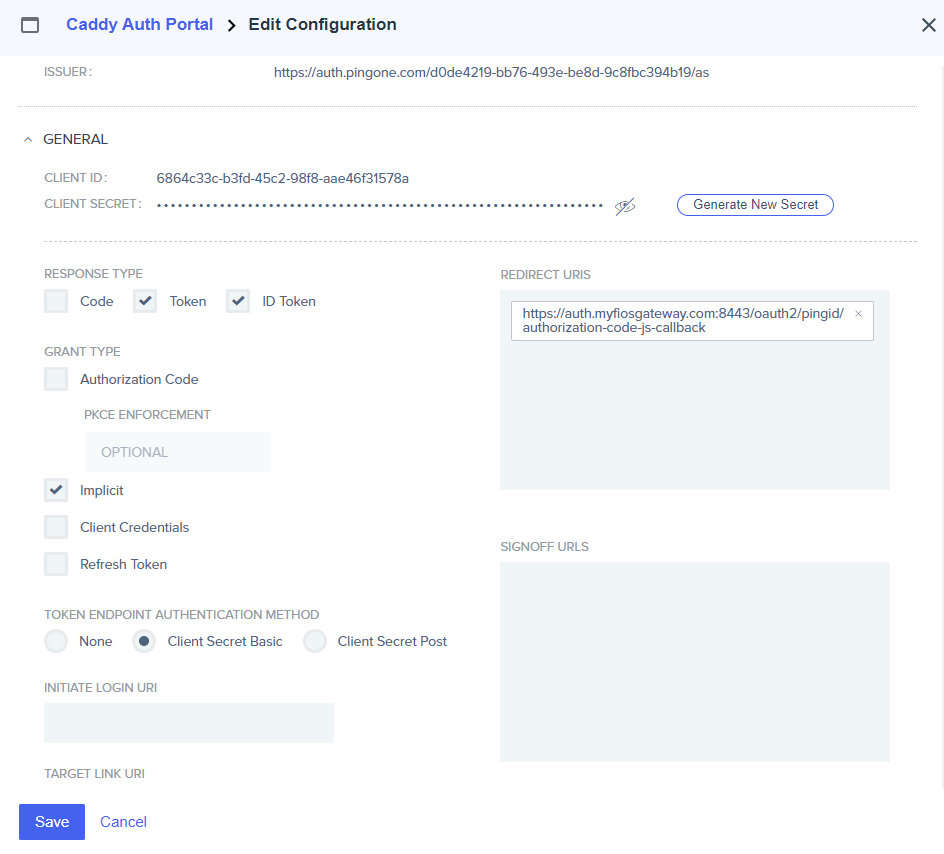

compatible. Never enable the old JS callback or implicit token id_token flow
merely to reproduce a screenshot.

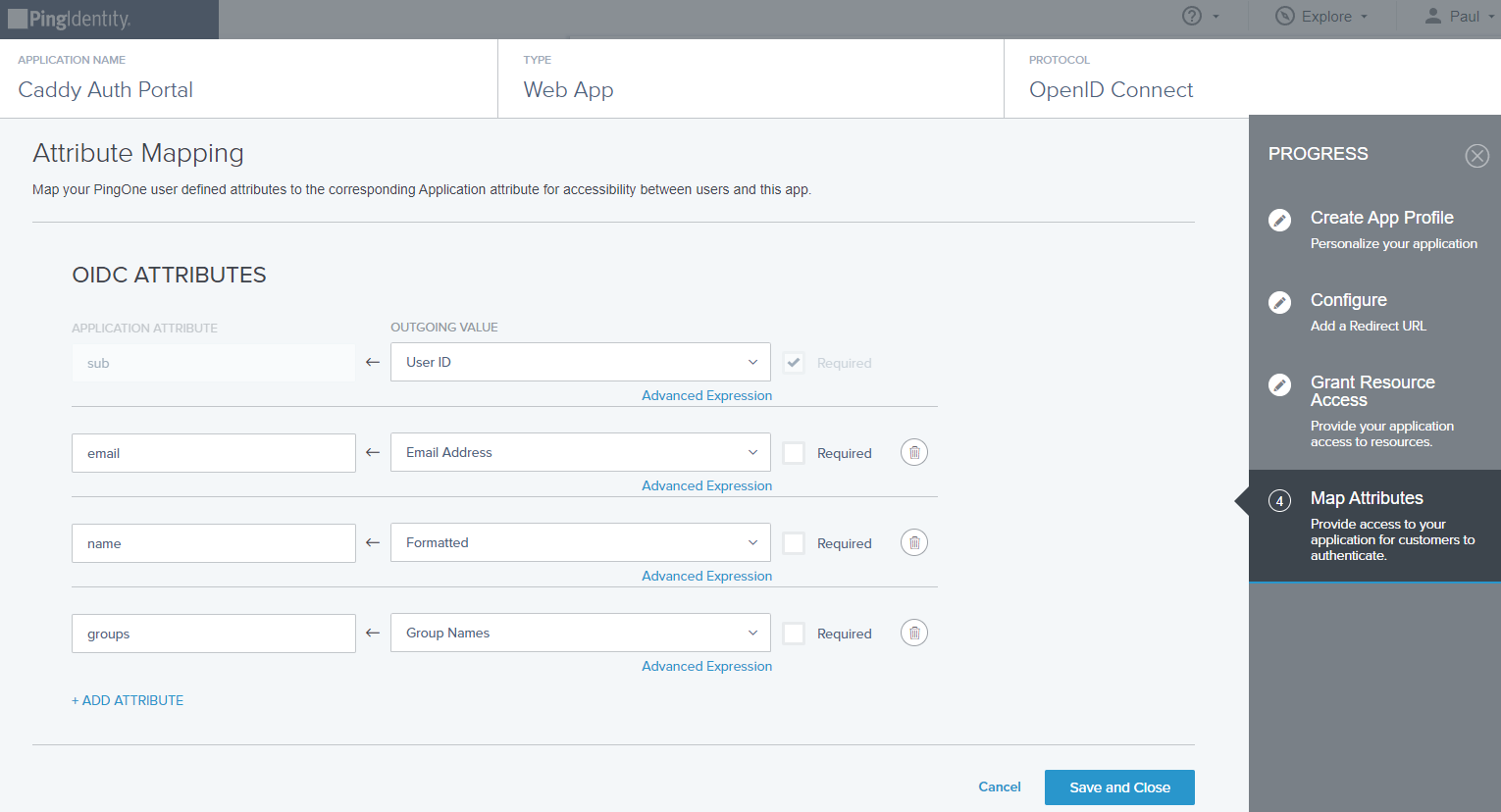

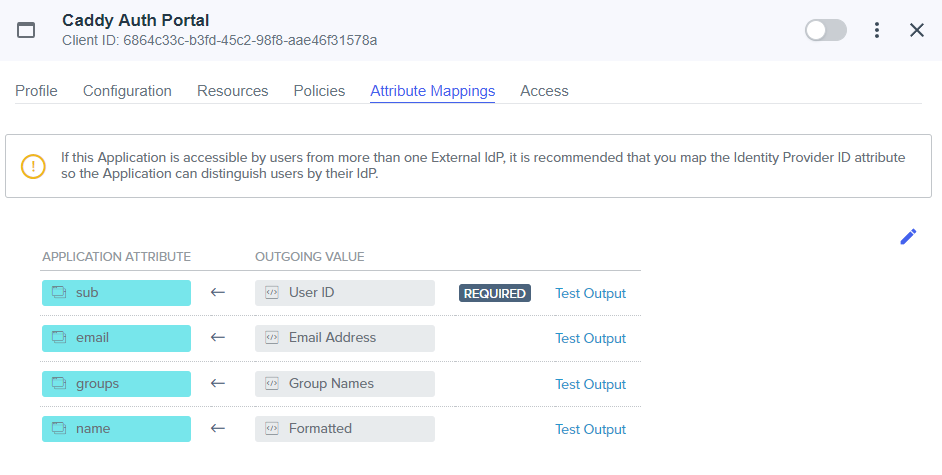

If group-based access is preferable, emit a string-array groups claim in the
ID token, inspect its exact values, clear reserved roles, and map only the
intended group to app/member. The generic OIDC guide
explains claim sources and UserInfo limits.
Verify and troubleshoot
Sign in through /auth/oauth2/pingid, inspect /auth/whoami?format=json, and
record the exact subject and realm without logging access tokens. Confirm that
an intended member reaches /app and another valid identity is denied. A
successful provider login alone does not establish application authorization.
Check callback scheme, hostname, port, mount, and realm literally; inspect provider errors and diagnostic logs. Keep client secrets on the server. These examples are parser-verified against the released bundle; console registration, live provider login, consent, and production TLS require verification in your own organization.
