Discord
Use the Discord OAuth2 named driver to identify an account and optionally map its guild memberships/roles. A guild is Discord's term for a server. This is a user OAuth application, not a bot invitation or a bot token configuration.

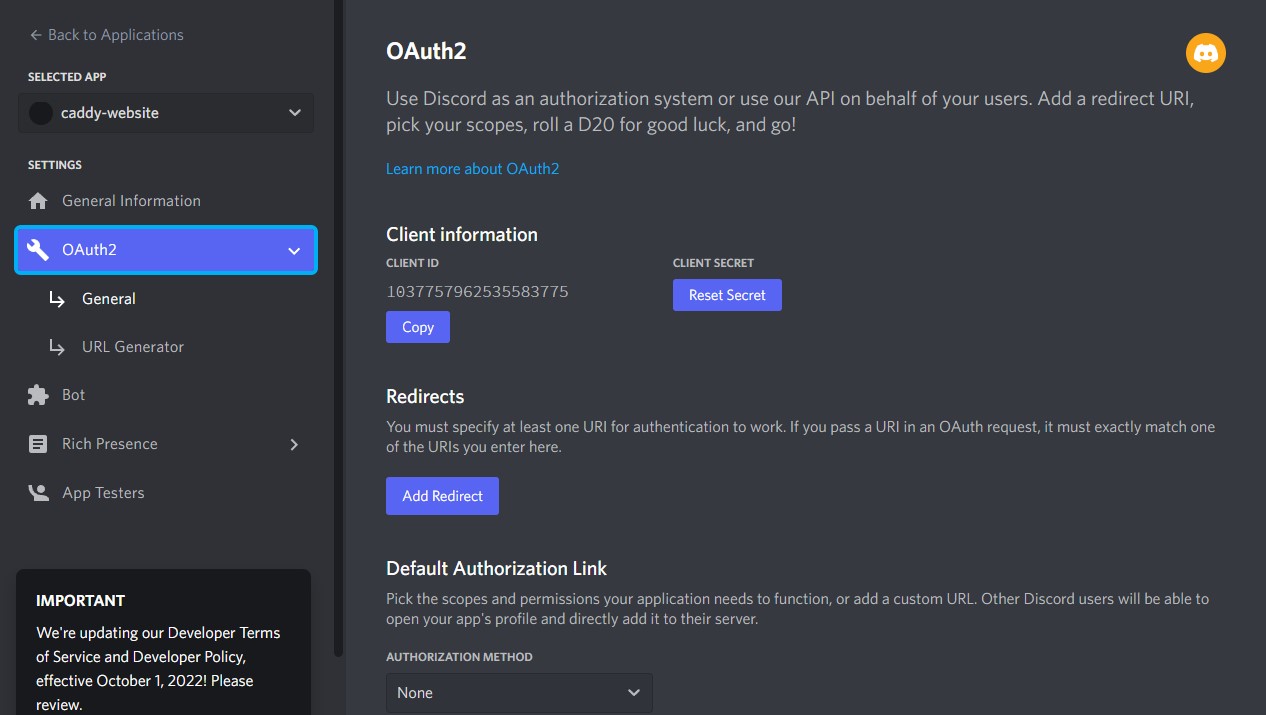

Registering a discord application
Create an application in the Discord developer portal, record its client ID and private OAuth client secret, and add exactly:
https://auth.example.com/auth/oauth2/discord/authorization-code-callback
Save DISCORD_CLIENT_ID and DISCORD_CLIENT_SECRET in the server environment.
Enable developer mode when copying numeric guild and role IDs. IDs and display
names are different; names alone cannot populate this example's filters.
See Discord's OAuth2 scopes and code flow.
Sample Caddyfile configuration
# caddy-security v1.3.0 / go-authcrunch v1.3.8. Replace auth.example.com.
{
admin off
persist_config off
security {
oauth identity provider discord {
realm discord
driver discord
client_id {env.DISCORD_CLIENT_ID}
client_secret {env.DISCORD_CLIENT_SECRET}
scopes identify email guilds guilds.members.read
user_group_filters ^{$DISCORD_GUILD_ID}$
}
authentication portal myportal {
enable identity provider discord
crypto default token lifetime 900
crypto key sign-verify {env.AUTHCRUNCH_SIGNING_KEY}
ui {
links {
"Example app" /app
"My identity" /auth/whoami
}
}
transform user {
regex match role "^(authp/.*|app/member)$"
action drop matched role
}
transform user {
match realm discord
action add role authp/user
}
transform user {
match realm discord
match role discord.com/{$DISCORD_GUILD_ID}/role/{$DISCORD_ROLE_ID}
action add role app/member
}
}
authorization policy apppolicy {
set auth url https://auth.example.com/auth/
crypto key verify {env.AUTHCRUNCH_SIGNING_KEY}
validate bearer header
allow roles app/member
}
}
}
auth.example.com {
route {
redir /auth /auth/ 308
authenticate /auth/* with myportal
@app path /app /app/*
route @app {
authorize with apppolicy
respond "You reached the protected example app." 200
}
respond "Open /app to begin." 200
}
}
Set a private AUTHCRUNCH_SIGNING_KEY plus numeric DISCORD_GUILD_ID and
DISCORD_ROLE_ID before parsing. The ID placeholders expand at parse time.
The initial transform clears reserved portal roles and direct app/member;
only the intended role in the intended guild grants application access.
The named driver defaults to identify and disables PKCE and nonce. email
requests optional email, guilds enables membership queries, and
guilds.members.read enables a per-guild member-role query. Email may still be
missing; choose deliberately whether your subject-based application permits
disable email claim check.
For account-specific access instead, match the entire
discord.com/NUMERIC_USER_ID subject with the correct realm, then add an
application role. A Discord account or guild administrator is not automatically
an AuthCrunch administrator.
Filtering by guild
user_group_filters contains regular expressions, not a wildcard language.
Use anchored ^NUMERIC_GUILD_ID$ for one exact guild. The old * example is
invalid regex; .* would match every returned guild and should be used only
when that broad disclosure/role mapping is intentional. Without filters, guild
membership does not produce these roles.
| Observed membership | Derived role |
|---|---|
| Member of an included guild | discord.com/GUILD_ID/members |
| Administrator permission bit in that guild | discord.com/GUILD_ID/admins |
Filtering controls which membership data becomes roles; it does not itself deny
an otherwise valid Discord login. The application's policy still requires
app/member. An API failure can leave login without guild roles; a restrictive
policy then denies application access.
Filtering by guild role
With both guilds and guilds.members.read, the connector queries each included
guild member and adds discord.com/GUILD_ID/role/ROLE_ID for returned role IDs.
The canonical transform admits exactly the selected guild-role combination.
It does not grant all guild members application access, nor does it promote a
Discord guild administrator to portal administration.
Test a member with the selected role, a member without it, and an account in another guild. Removing a guild role does not revoke every previously issued portal JWT immediately; use a suitable access lifetime and require a fresh login to inspect changed provider data.
Verify and troubleshoot
Sign in through /auth/oauth2/discord, inspect /auth/whoami?format=json, and
record the exact subject and realm without logging access tokens. Confirm that
an intended member reaches /app and another valid identity is denied. A
successful provider login alone does not establish application authorization.
Check callback scheme, hostname, port, mount, and realm literally; inspect provider errors and diagnostic logs. Keep client secrets on the server. These examples are parser-verified against the released bundle; console registration, live provider login, consent, and production TLS require verification in your own organization.
Agentic Prompts
Copy a prompt into your LLM to explore this topic. Each prompt prioritizes upstream repository guidance and code over this page, and asks for version-aware reasoning.
Distinguish user OAuth from a bot
Help me understand Discord.
Primary authorities (take precedence over website documentation):
https://github.com/greenpau/caddy-security/blob/main/AGENTS.md
https://github.com/greenpau/caddy-security/tree/main/.codex/skills
https://github.com/greenpau/go-authcrunch/blob/main/AGENTS.md
https://github.com/greenpau/go-authcrunch/tree/main/.codex/skills
Read each repository's root AGENTS.md first, then any scoped AGENTS.md that
applies to inspected paths. Read the relevant SKILL.md files and follow their
implementation and test references.
Relevant skills to locate: configuration-oauth-providers,
oauth-identity-provider.
Secondary reference:
https://docs.authcrunch.com/docs/authenticate/oauth/backend-oauth2-0013-discord
If a source is inaccessible, ask me to paste its relevant text. Identify the
versions your answer applies to; main may be newer than my release. Resolve
disagreements using code and tests, and flag unverified claims. Use synthetic
credentials and redacted examples; explain proposed checks before any changes.
Explain Discord account identity, OAuth client secret, scopes, guilds, and
guild roles. Contrast this with bot installation/token authorization. Trace
the named driver’s actual transaction defaults and profile path rather than
assuming generic OIDC behavior.
Read guild filters and role names
Help me understand Discord.
Primary authorities (take precedence over website documentation):
https://github.com/greenpau/caddy-security/blob/main/AGENTS.md
https://github.com/greenpau/caddy-security/tree/main/.codex/skills
https://github.com/greenpau/go-authcrunch/blob/main/AGENTS.md
https://github.com/greenpau/go-authcrunch/tree/main/.codex/skills
Read each repository's root AGENTS.md first, then any scoped AGENTS.md that
applies to inspected paths. Read the relevant SKILL.md files and follow their
implementation and test references.
Relevant skills to locate: configuration-oauth-providers,
oauth-identity-provider.
Secondary reference:
https://docs.authcrunch.com/docs/authenticate/oauth/backend-oauth2-0013-discord
If a source is inaccessible, ask me to paste its relevant text. Identify the
versions your answer applies to; main may be newer than my release. Resolve
disagreements using code and tests, and flag unverified claims. Use synthetic
credentials and redacted examples; explain proposed checks before any changes.
Compare an anchored numeric guild regex, invalid star wildcard, and broad
dot-star regex. Trace guild membership and guild-role output names. Explain
why selecting returned data is separate from the portal transform and
application ACL.
Review the membership scopes
Help me understand Discord.
Primary authorities (take precedence over website documentation):
https://github.com/greenpau/caddy-security/blob/main/AGENTS.md
https://github.com/greenpau/caddy-security/tree/main/.codex/skills
https://github.com/greenpau/go-authcrunch/blob/main/AGENTS.md
https://github.com/greenpau/go-authcrunch/tree/main/.codex/skills
Read each repository's root AGENTS.md first, then any scoped AGENTS.md that
applies to inspected paths. Read the relevant SKILL.md files and follow their
implementation and test references.
Relevant skills to locate: configuration-oauth-providers,
oauth-identity-provider.
Secondary reference:
https://docs.authcrunch.com/docs/authenticate/oauth/backend-oauth2-0013-discord
If a source is inaccessible, ask me to paste its relevant text. Identify the
versions your answer applies to; main may be newer than my release. Resolve
disagreements using code and tests, and flag unverified claims. Use synthetic
credentials and redacted examples; explain proposed checks before any changes.
Explain identify, optional email, guilds, and guilds.members.read in relation
to actual API requests. Ask whether a guild or one specific role should grant
app access. Keep missing/API-failed membership from becoming a broad
permission.
Diagnose a denied guild member
Help me understand Discord.
Primary authorities (take precedence over website documentation):
https://github.com/greenpau/caddy-security/blob/main/AGENTS.md
https://github.com/greenpau/caddy-security/tree/main/.codex/skills
https://github.com/greenpau/go-authcrunch/blob/main/AGENTS.md
https://github.com/greenpau/go-authcrunch/tree/main/.codex/skills
Read each repository's root AGENTS.md first, then any scoped AGENTS.md that
applies to inspected paths. Read the relevant SKILL.md files and follow their
implementation and test references.
Relevant skills to locate: configuration-oauth-providers,
oauth-identity-provider.
Secondary reference:
https://docs.authcrunch.com/docs/authenticate/oauth/backend-oauth2-0013-discord
If a source is inaccessible, ask me to paste its relevant text. Identify the
versions your answer applies to; main may be newer than my release. Resolve
disagreements using code and tests, and flag unverified claims. Use synthetic
credentials and redacted examples; explain proposed checks before any changes.
Help me inspect redacted numeric guild/role IDs, scopes, regex, normalized
role names, and provider errors. Distinguish membership without selected role,
another guild, missing filter, and missing email policy. Never request a bot
token as a substitute.
Test selected-role access
Help me understand Discord.
Primary authorities (take precedence over website documentation):
https://github.com/greenpau/caddy-security/blob/main/AGENTS.md
https://github.com/greenpau/caddy-security/tree/main/.codex/skills
https://github.com/greenpau/go-authcrunch/blob/main/AGENTS.md
https://github.com/greenpau/go-authcrunch/tree/main/.codex/skills
Read each repository's root AGENTS.md first, then any scoped AGENTS.md that
applies to inspected paths. Read the relevant SKILL.md files and follow their
implementation and test references.
Relevant skills to locate: configuration-oauth-providers,
oauth-identity-provider.
Secondary reference:
https://docs.authcrunch.com/docs/authenticate/oauth/backend-oauth2-0013-discord
If a source is inaccessible, ask me to paste its relevant text. Identify the
versions your answer applies to; main may be newer than my release. Resolve
disagreements using code and tests, and flag unverified claims. Use synthetic
credentials and redacted examples; explain proposed checks before any changes.
Create cases for selected guild-role member, guild member without it, account
in another guild, API failure, and role removal with fresh login. Explain why
Discord administration is not AuthCrunch administration and why an old portal
JWT can retain issued roles.
Source Code References
Start with the code search, then follow the parser, runtime, and tests relevant
to this topic. These links target main; use GitHub's branch/tag selector to
compare them with your installed release.
- Search this topic in both repositories — searches topic-specific symbols and paths across both codebases.
- caddy-security: caddyfile_identity_provider_oauth.go — adapts OAuth/OIDC provider settings, scopes, endpoints, and trust options.
- go-authcrunch: pkg/idp/oauth/config.go — validates generic and named-driver defaults and endpoint settings.
- go-authcrunch: pkg/idp/oauth/user.go — fetches and normalizes named-provider profile, membership, and identity data.
- go-authcrunch: pkg/idp/oauth/user_groups.go — retrieves and filters provider-specific group membership data.
- go-authcrunch: pkg/idp/oauth/user_groups_test.go — tests provider group extraction and filtering.
